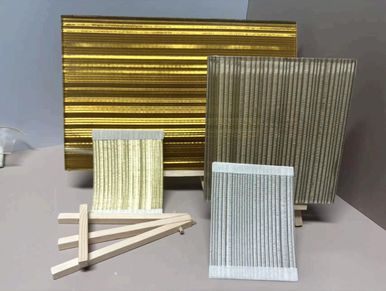

Decorative interlayer for glass lamination.

---

The  Metal fabric with Jacquard Pattern  provide a shinning design of the glass.

Various Pattern can be provided. It can be toughened laminated glass with this metal mesh, as a decorative fabric interlayer for glass lamination

Maximum width : 3m

Material: metal wire

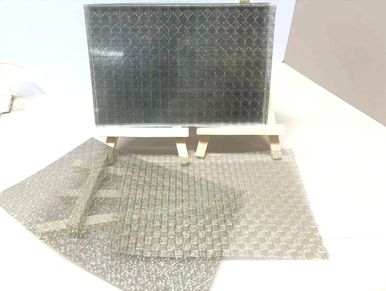

Metal Net-Variable grid designs so much different design with metal net, when you laminate with glass, it shows different view for the laminated tempered glass.

Maximum width: 2.8m

Material: metal wire

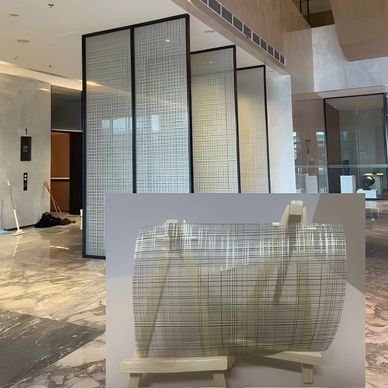

The metal mesh with great glossiness provide a good visual effort after laminated with glasses. The metallic texture is so obviously and suitable for the hall of the hotel. As a kind of decorative fabric interlayer for glass lamination, it is much safe and much attractive.

Color: Golden/stainless steel/ light golden

Width: 1.4M/3M width can be customized

Height: within 2.8M

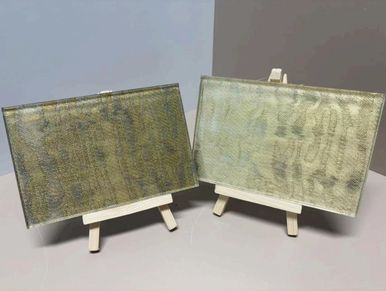

The cotton material is soft and natural. The color is plain and suitable for the modern and simple style design.  Cotton material is a kind of decorative fabric interlayer for glass lamination, provide an elegant feeling for the glass.

Maximum width: 2.8m

Lamination temperature： 110 celsius degree

Material: Cotton

Gradient Pet film is a customized pattern, you can have different effort, like gradient effort from bottom to top of the glass. We can print any pattern and any color on the film. A special decorative fabric interlayer for glass lamination, the printing design is quite popular for the toughened laminated glass.

Basic material can be PET film, mesh, fabric, paper.

Maximum width: 2.8m

Length: 50m or 100m/roll

Material: PET

Lamination temperature: 110 celsius degree

Decoration paper- it is a special paper that you can use for glass lamination. the pattern can be seen when the light on. Unique decorative fabric interlayer for glass lamination is quite good for the logo and company brand design,also good for the office partition.

Suitable for the logo design, office partition.

Maximum width: 1.5m

Material: Paper

Lamination temperature: 110 celsius degree

EVA film is the laminated interlayer for the laminated safety glass. The main material is ethylene-vinyl acetate copolymer, which has excellent transparency, flexibility and adhesion.

Application: laminated tempered glass or toughened laminated glass . When the EVA film melt after heating in the laminated machine, it will like glue that bond 2 pcs of glasses together.

Advantage: 1) Improve the tensile breaking of the glass, even the glass broke, The fragments would not fall down.2)  WIth good weather resistance to apply for outdoor ,with strong UV resistance to protect the furniture . 3) It is flexible to laminate with different kind of material, like PET, PDLC film, fabric ,arc...

Specification:

Thickness: 0.38mm/0.5mm/0.76mm/1.14mm/1.52mm

Width: maximum  width 2.6m, can be customized.

Length: 100m/80m/50m/30m/30m

Type of white color:

Opaque milky white:  The opaque white EVA film can't see through the glass, suitable for back cover.  15% transmittance,  93% shadow blocking.

Application: laminated tempered glass or toughened laminated glass

Sandy white EVA film: about 40% transmittance , 93% shadow blocking. Suitable for bathroom and office partition..

Jude white: 80% transmittance,  85% shadow blocking, suitable for decorative fabric  lamination to have a translucent effort.

Application: Indoor

Maximum width: 2400mm

Thickness； 0.38mm

                             0.76mm(MQQ: 20 ROLLS)

Length: 50m/100m

We provide Various color to meet different designer's design to meet with laminated tempered glass .  Transparent color and opaque color.

Color Option: Black/red/pink/grey/brown/blue

Thickness: 0.38mm

Dimension； 2.4*50m/roll

Application: Indoor

Mostly EVA film in the market are for laminated tempered glass used only. The new kind of EVA film is with heat resistance function which provide a temperature decrease for the interior space.  The Infrared blocking of toughened laminated glass is up to 90%, performance from 800 to 2500nm  VLT  above 70% ,Suitable  for curtain, skyroof.

Lamination process: 130 celsius degree

Equipment: laminated machine, autoclave.

1) Fabric / Pet lamination: Due to the material can't heat with a high temperature , we will suggest to use 110  celsius degree to process the material to keep origin color and shape the the material.

2）Metal mesh: Due to the metal mesh is thin and hard to laminate, please be sure the EVA film or PVB film is with enough thickness to bond the glasses with metal mesh together. Or it will be easy to have bubble.

3) laminated tempered glass： Some tempered glass is not with good flatness, you need to add more layers of the EVA film to be sure the glass bond together.

Fast response to our clients when they meet problems.  Active and effective communication will help our clients to solve the problems , save time and save cost.

if you have more questions of laminated tempered glass, don't hesitate to contact us.

1 time used plastic bag is a material which can be used for curved laminated tempered glass and decorative fabric interlayer for glass lamination The temperature can be up to 150 celsius degree. Compared to the standard vaccum bag, this plastic bag is much flexible and with good vaccuming of laminated glass. There would not too much pressure on the glass edge, keep the stable thickness of the glass and glass would not rebound after cooling.  Suitable for curved lamination glass, car glass, smart glass lamination.

Specification of the plastic film:1.65m, 2.3m,3m, folding size: 0.82m/1.25m*1.5m*200m per roll

Heating cutter is quite useful for different kind of material(such as film, fabric, leather, rope) cutting. Especially laminated tempered glass, it is hard to clean the glass edge. The cutter is with fan for cooling during you cut it, so the high temperature would not do harmful to people, and it can keep working in 1 hour.

Frequency: 50/60HZ
* Temperature adjustment: adjustable
* Blade Max temperature: 600 degree
* Voltage:220V±10%/110v±10%
* Power line length: 3M
* Cutting Range:Suitable for commercial and industrial use, it can cut lightweight foam, KT board pink foam, polyurethane,
polyethylene, expanded polystyrene (EPS) and extruded polystyrene (XPS), styrofoam, polyester foam, sponge etc
* Package size: 32cm*24cm*11cm
* Net weight: 1.9kg

The adhesive tape is used for glass bonding that the glass would not move,  It has a good control for the glue flow out and left the glue on the silicone bag, prevent the glass edge not damaged. Easy to take out and would not left any glue on the glass.

Application: 1) For surface protection under high temperature working, such as CNC cutting, laminated tempered glass . 2) Blocking for digital tube or  LED display  when filling glue.

Thickness: 55um.

Width: 2cm/3cm/4cm/5cm

Length:33m/66m per roll
